시험기 사업부

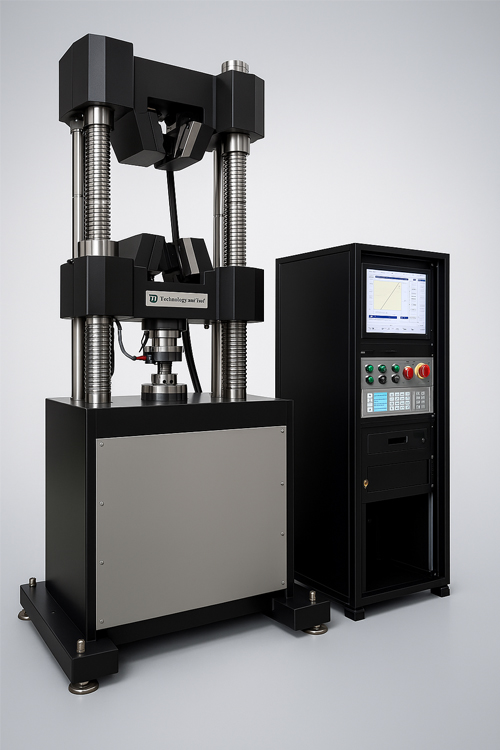

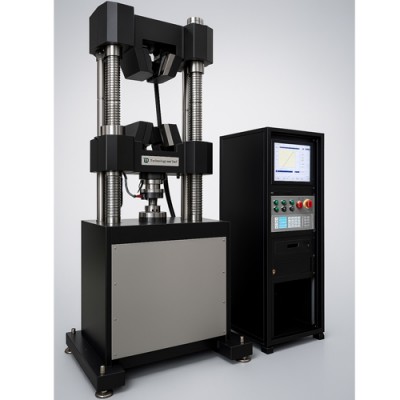

만능 재료 시험기 - UNIVERSAL TESTING MACHINE
Frame Capacity |
MAX. 30 Tonf (300KN) |
MAX. 50 Tonf (500KN) |
MAX. 100 Tonf (1000KN) |
MAX. 200 Tonf (2000KN) |
Displacement Resolution |
0.001mm |
0.001mm |
0.001mm |
0.001mm |
Load Resolution |
1/100,000 |
1/100,000 |
1/100,000 |
1/100,000 |
Test space |
490 x 540 (mm) |
480 x 540 (mm) |
510 x 410 (mm) |
570 x 480 (mm) |
Load range |
1 - 4 Steps (option) |
1 - 4 Steps (option) |
1 - 4 Steps (option) |
1 - 4 Steps (option) |
Tensile inserts(Flat specimen) |
0 ~ 15, 15 ~ 30 (mm) |
0 ~ 15, 15 ~ 40 (mm) |
0 ~ 25, 30 ~ 60 (mm) |
0 ~ 25, 30 ~ 60 (mm) |
Tensile inserts(Round specimen) |
Φ8 ~ 25, Φ25 ~ 40 |
Φ8 ~ 25, Φ25 ~ 40 |
Φ10 ~ 20, Φ20 ~ 60 |
Φ12 ~ 30, Φ30 ~ 68 |
Table Size |
490 x 580 (mm) |
480 x 580 (mm) |
510 x 580 (mm) |
570 x 580 (mm) |
Test Speed |
0.1 - 80mm/min |
0.1 - 80mm/min |
0.1 - 80mm/min |
0.1 - 80mm/min |
Cross Head Speed |
500mm/min |
500mm/min |
500mm/min |
500mm/min |
Max Displacement |
200mm |
200mm |
200mm |
200mm |
Hydraulic Control System |
Servo b/v or Manual b/v |
Servo b/v or Manual b/v |
Servo b/v or Manual b/v |
Servo b/v or Manual b/v |
PC Control Reck Size |
700 x 700 x 950 (mm) |
700 x 700 x 950 (mm) |
700 x 700 x 950 (mm) |
700 x 700 x 950 (mm) |
Frame Dimension |
1010 x 580 x 2153 (mm) |
1010 x 580 x 2200 (mm) |
1175 x 850 x 2519 (mm) |
1375 x 940 x 2835 (mm) |
Power Supply |
380V 3P 60Hz 5Kw |
380V 3P 60Hz 5Kw |
380V 3P 60Hz 7Kw |
380V 3P 60Hz 7Kw |
