Hot Press

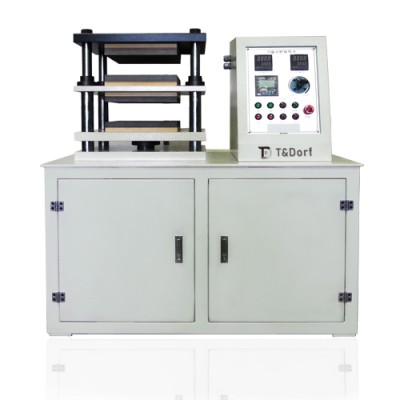

Hot Press This is equipment for forming and producing standard test pieces such as plastic and rubber.
  It can be manufactured according to customer's requirements such as heating temperature, cooling method, heating plate size change according to user's request, and it is a device that has excellent flatness when pressurized.
  T & Dorf's unique heat control method maintains a uniform temperature distribution on the heating plate and uniform pressurization distribution when pressurized.“

Model : TD-HP02
Standard : According to various standards
Technical Specification

Model TD-H01
Temp. Range RT~400˚C
Max Capacity 30ton, 50ton, 100ton (Option)
Plate material SS45C 열처리
Plate Size (Heating) 300 × 300, 400 X 400, 500 X 500 (Option)
Stroke Max.200mm
Pressure System Auto Type Hydraulic Pump
Demensions 1400 × 700 × 1700
Net Weight 900kg
Power AC 220V / 380V(3pH) / 50.60Hz
