Agin Tester

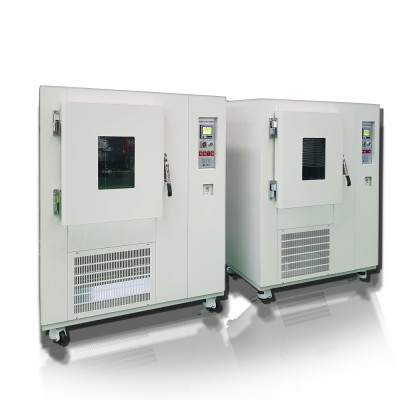

The rubber aging tester is a tester that tests shrinkage and aging of test specimens by heating rubber, plastic, electric wire, etc. at high temperature.
  The shelf is mounted on the rotating shaft of the chamber and it is allowed to circulate 5~8 times per minute to maintain uniform temperature on the specimen.“

Model : TD-AT02
Standard : According to various standards.
List Estimate



Model TD-AT02
Temp. Range Amb. 5˚C~250˚C (350˚C 선택사항)
Temp. Control Digital P.I.D Control
Temp. Stability ± 0.5˚C at 150˚C
Meterial In: SUS 304, Out: SS 41
Motor Fan(1/4HP),Drive(1/20HP)
Sample Rotation Speed 3~8 rpm
Shalve 2단(2단이상 옵션)
Heater 3Kw
Timer 24Hr( Auto Timer)
Dimensions (In) 500W × 500D × 600H (mm)
Dimensions (Out) 1000W × 800D × 1500H (mm)
Power AC220V / 50, 60Hz
Weight 90kg
