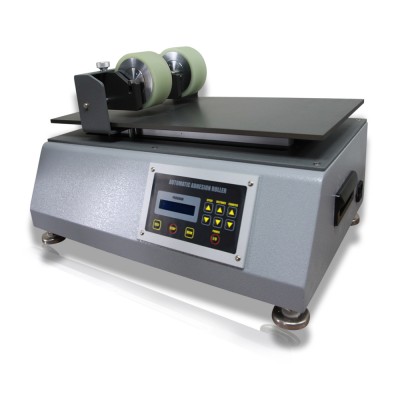

Auto Adhesive Tester
The automatic adhesive roller is a device for pressing the adhesive tape and the adhesive sheet at a constant load and at a uniform speed.
Standard specimens for measurement can be produced at uniform pressure and speed.

Model : TD-A01
Standard : KS A1107, 1514, 1526, ASTM D1894, D4917, ISO 8295
List Estimate
Technical Specification

Model
Main Body
 AL & 특수분체도장
Pannel
 Speed, Counter, Power
Roll Weight
850g, 1000g,2000g (Option)
Plate Size
 150W × 100D(mm)
Roller
Rubber 6T Shore A70˚
Stage
2 Channel (Option: 3 Channel)
Speed
 30~300mm/min (Adjustable Type)
Weights 35kg
Dimensions
 480W × 350D × 420H (mm)
Power
 AC 220V / 50, 60Hz
