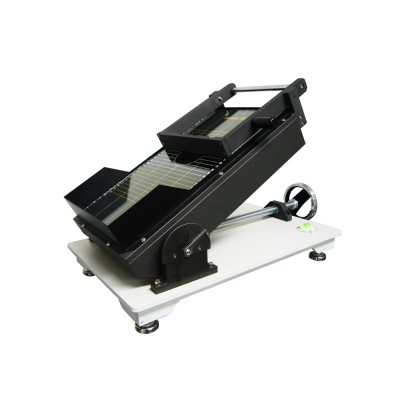

Ball Tack Tester
Initial Adhesion Tester This is a device for measuring the adhesive strength of adhesives and tapes.
  Measure the size and number of the largest ball by turning the standard ball at the specified angle (30, 20 ~ 40 degrees) and stopping for more than 5 seconds. "

Model : TD-BT05
Standard : KS T1028, ASTM D1894, D3121, ISO 8295
Technical Specification

Model TD-BT05
Main Body Aluminum & Thermo Powder Coating
Sliding Angle Adjustable Type(5˚ ~65˚)
Test Point 4 Channel
Clamp Rotation Bar Type
Standard Ball Steel Ball, 31set
Dimensions 520W × 340D × 420H (mm)
